SVW servo electrical torque wrench

*Non impact constant torque brushless high precision electric wrench for continuous high load use

◎Wrench is composed of digital display controller, cable and wrench body

◎ Can realize torque, angle control, torque + angle control

◎ Display the torque value in real time, and return automatically after tightening

◎ Convenient torque and corner setting, resolution to 1Nm/ 1 °

◎ The indicator light informs the tightening result, so that the operator can see it at a glance

◎ The control accuracy of brushless motor and precision gearbox shall be within ± 3%

◎ Continuous use, suitable for high frequency bolt assembly or disassembly

◎ Maintenance free motor, durability is much higher than brush motor

◎ Data storage, generating excel file directly, traceable

◎ Easy to operate, preset and store common torque and angle

◎ Receive PLC instructions and support integration or embedding into customer system

◎ Display the torque value in real time, and automatically back off when tightening is completed

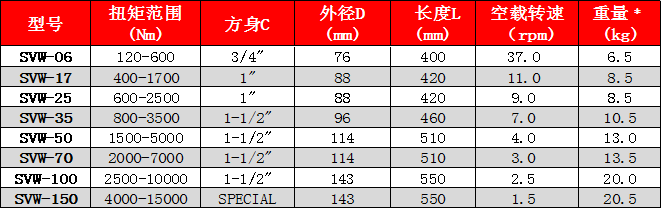

Remark:the above weight does not include reaction arm,SVW-150 send two free sockets.
